113-3140 Edge Segment Aftermarket Spare Parts for CAT 980 Loader
Production Description: Sand-casting half arrow for Loader
Function: installed between adapters as protection
Material: High Quality Alloy Steel
Part of catalog for CAT Model:
Part No. Weight Model Dimensions:
4T6692HA Segment 25 lbs 939 - 963 10.88” 6.13” 2.25” 1.38” 7.69”
4T6693HA Segment 26 lbs 920 - 963 10.88” 6.13” 2.25” 1.38” 8.25”
4T6694HA Segment 29 lbs 916 - 963 10.88” 6.13” 2.25” 1.38” 9.00”
4T6695HA Segment 34 lbs 936 - 960 10.88” 6.13” 2.25” 1.38” 10.44”
174 4114 Segment 55 lbs 960F, 966D 13.50” 7.50” 2.88” 1.75” 10.63”
174 4116 Segment 59 lbs 966G, 970F 13.50” 7.50” 2.88” 1.75” 11.56”
173 7447 Segment 59 lbs 980C,F, 988B 13.75” 7.75” 2.88” 1.56” 11.38”
174 4115 Segment 69 lbs 980F,G,H 14.63” 8.13” 2.88” 1.75” 12.50”
135 9544 CTR Segment 83 lbs 966G, 972G 18.32” 10.31” 2.88” 1.75” 11.81”
135 9545/46 RH/LH Segment 86 lbs 966G, 972G 18.32” 10.31” 2.88” 1.75” 11.97”
113 3140 CTR Segment 80 lbs 980C,F 18.28” 10.28” 2.88” 1.75” 11.34”

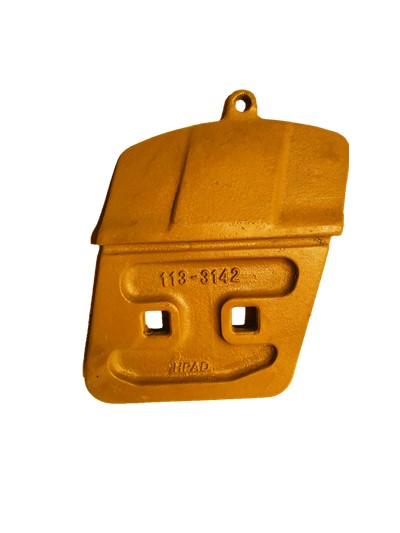

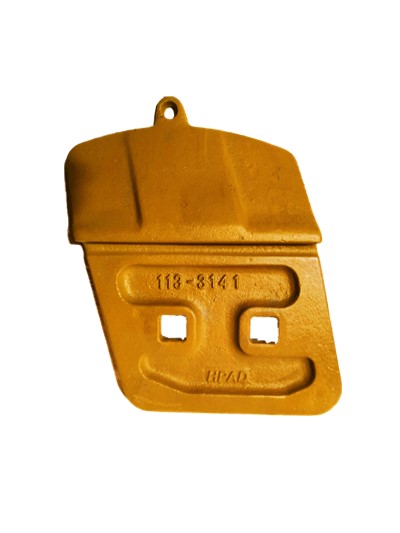

113 3141/42 RH/LH Segment 94 lbs 980C,F 18.28” 10.28” 2.88” 1.75” 12.91”
9W5734HA CTR Segment 83 lbs 980 988B,G 16.00” 10.50” 3.25” 1.75” 12.25”
116 7460 CTR Segment 100 lbs 980F,G, 988B,F 18.83” 11.00” 3.13” 2.00” 12.28”
116 7461/62 RH/LH Segment 97 lbs 980F,G, 988B,F 18.83” 11.00” 3.13” 2.00” 12.28”
109 9080 CTR Segment 105 lbs 988F,G, 5080 18.83” 11.00” 3.13” 2.00” 13.47”
109 81/82 RH/LH Segment 109 lbs 988F,G, 5080 18.83” 11.00” 3.13” 2.00” 13.47”
275 5460 CTR Segment 191 lbs 988F,G, 990, 21.34” 13.09” 4.25” 2.50” 16.14”
275 5461/62 RH/LH Segment 213 lbs 988F,G, 990, 21.34” 13.09” 4.25” 2.50” 17.17”
275 5470 CTR Segment 240 lbs 988F,G, 990, 21.34” 13.09” 5.00” 3.25” 16.14”
275 5471/72 RH/LH Segment 272 lbs 988F,G, 990, 21.34” 13.09” 5.00” 3.25” 17.17”
